The VW321A series wireless module provides the capability of a short range,reliable wireless point-to-point,point-to-multipoint and mesh network RF data communications link. They can be used in a variety of data communications applications that require a simple to use invisible data link.
The wireless modules are designed to operate in the unlicensed ISM frequency band (315MHz/433MHz/868MHz/915MHz ISM band) and are therefore acceptable for use in many countries.
Features:
● 4 Operation modes: Transparent mode,Transparent secured mode,Addressed mode and Addressed secured mode.
● Repeater supported
● Integrated wireless link protocols
● Deep sleep mode (Power down mode) /Wakeup Control
● Server-Client mode
● Broadcast Multi-drop mode
● Easy configuration by AT commands.
● Easy configuration with a user friendly control panel on PC.
Major parameters:
| Frequency band： |
315/433/868/915MHz |
| Interface： |
RS232/RS485/USB |
| Modulation: |
2-FSK |
| Max. Tx. power： |
1Ｗ (+30dB) |
| Max.operating current： |
1A |
| Supply Voltage: |
+5V(USB/RS232)；+24V(RS485) |
| RF data rate： |
1200bps ~ 115.2kbps |
| Channel numbers: |
Multi- channel |
| linkage range ： |
2km linkage range at 9600bps,L.O.S |
| operate temperature: |
-30℃ ~ 80℃ |
| Size: |
80mm x 50mm x 20mm（Interface：RS232/RS485）
84mm x 84mm x 24mm （Interface：USB）
|
| Interface footprint： |
Terminal Block/USB |
| Antenna impedance: |
50Ω |
Major applications:
- Wireless 232 or 485/422 data link
- Water,electricity,gas and other automatic meter reading (AMR）system;
- Building automation system; Security entry system;
- Intelligent traffic; Vehicle Control;
- Wireless scanner;
- Restaurant Order System Management;
- Industrial control,remote sensing,automatic data collection system;
- Wireless data transmission; Digital audio,digital image transmission;
- Wireless electronic display screen;
- Telemetric systems
- Oil Well Measuring,Environmental Protection Monitoring
- Hydrology Water Level Monitoring
- Robot Controls
- Wireless conference system; Wireless microphone solutions
- etc.

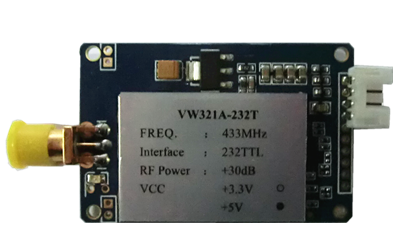

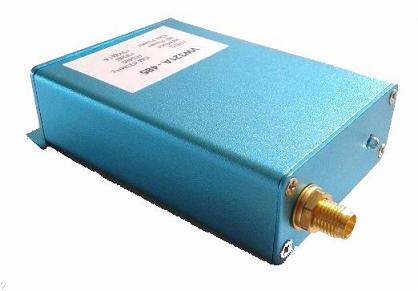

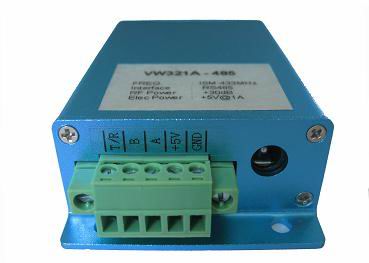

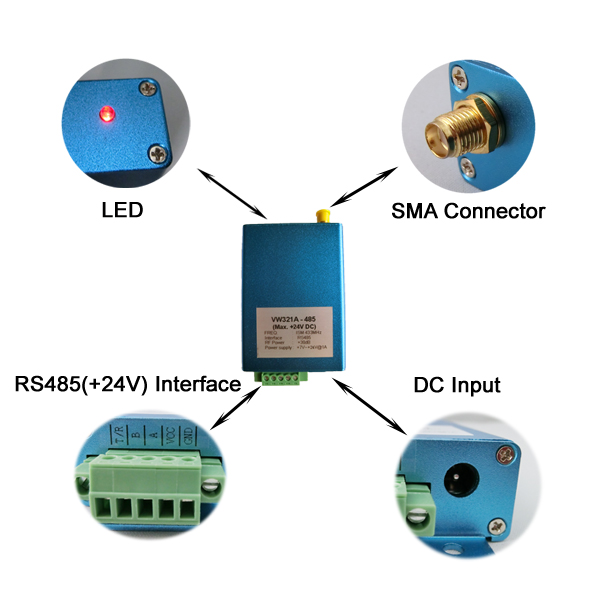

VW321A-485（+24V）:

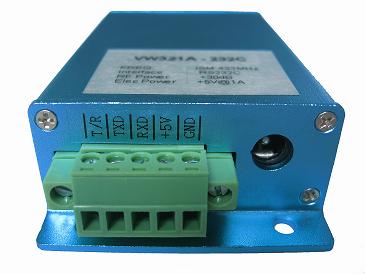

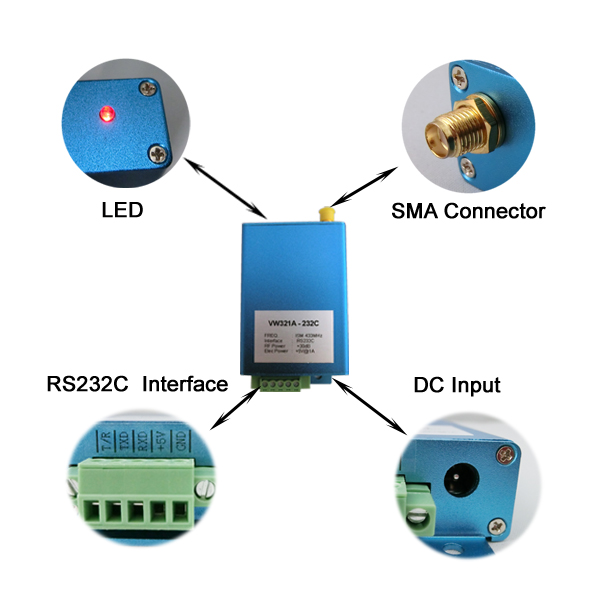

VW321A-232C：

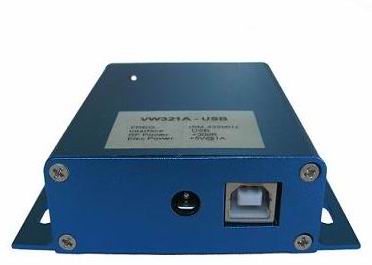

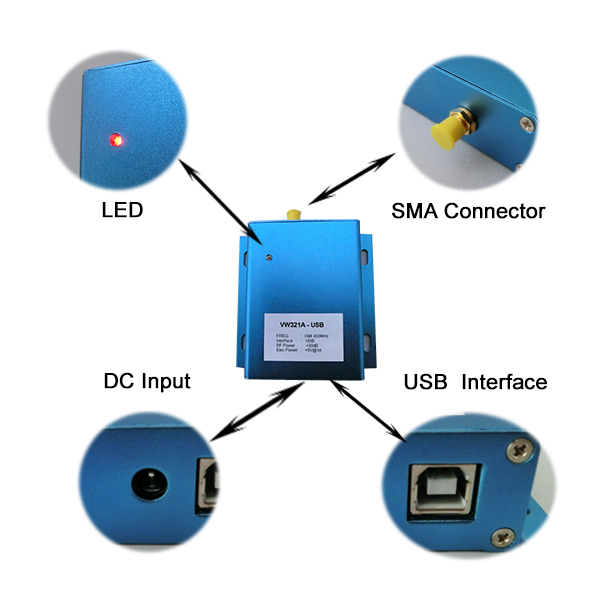

VW321A-USB：
